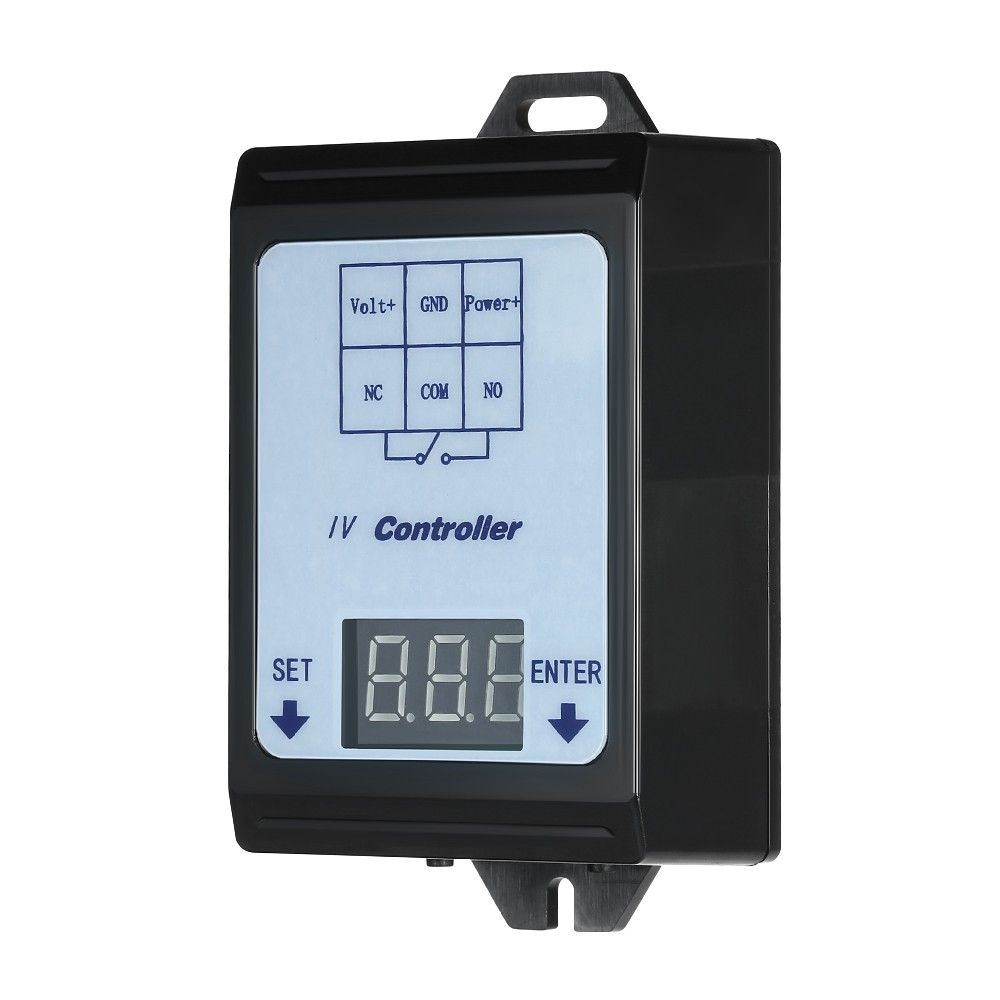

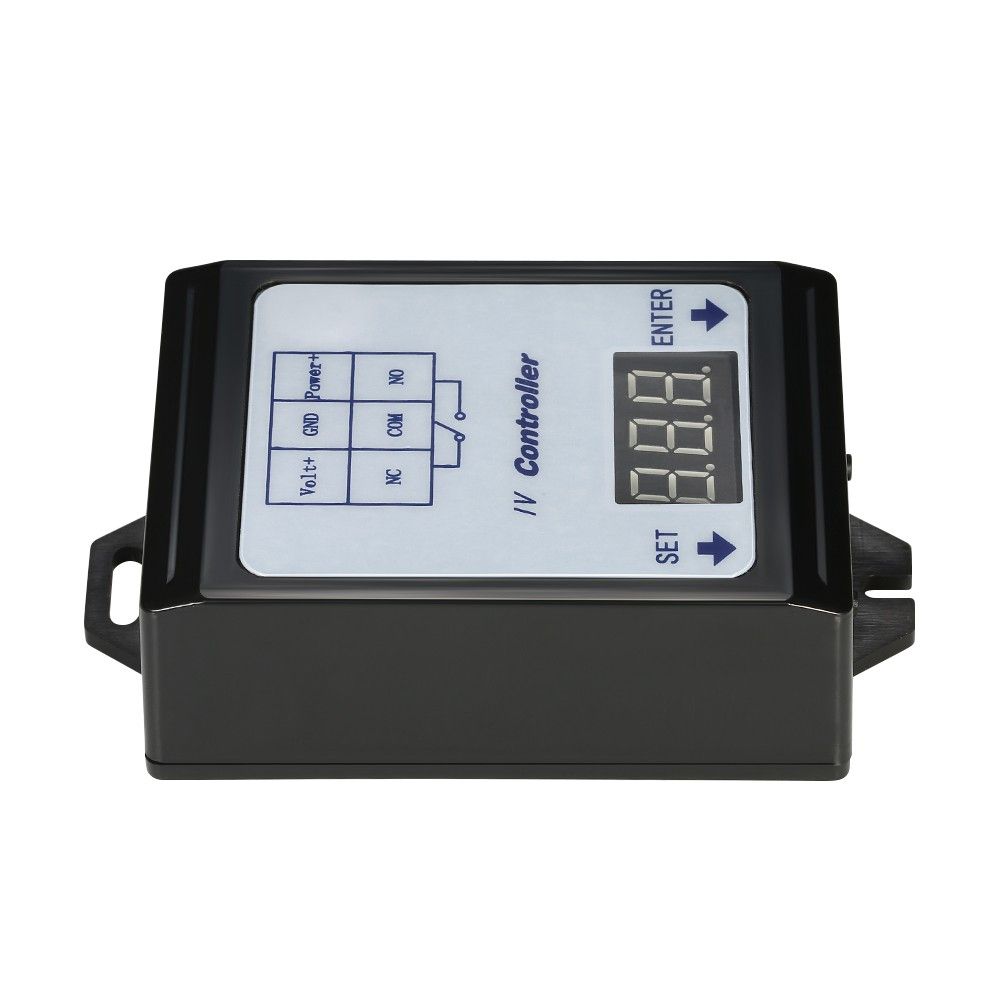

DC 6~80V Voltage Detection Charging Discharge Monitor Relay
DC 6~80V Voltage Detection Charging Discharge Monitor Relay
Features:
Digital display DC voltage detection, control the relay output.

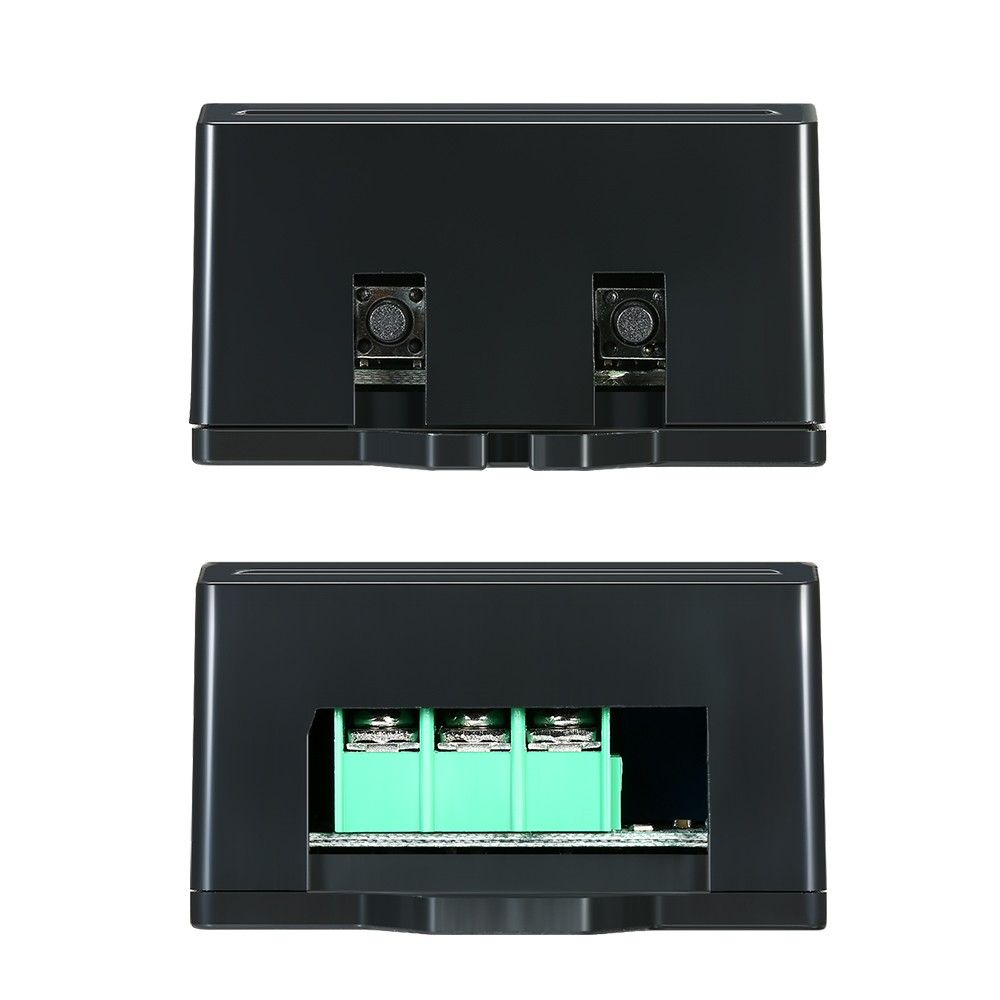

DC 6~80V relay interface board with 2 buttons for easy operation.
With clear LED display, convenient to check the value.
Adjustable Voltage Detection Range: DC 0~99.9V.
When the measured voltage is lower than the lower limit or higher than upper limit value, the relay works.
Can be used for voltage detection switch, battery over/under voltage protector or discharge meter.
Comes with a cover for protection.
Specifications:
Material: PCB + ABS
Working Voltage: DC 6~80V
Voltage Detection Range: DC 0~99.9V
Error: +/-0.1V
Working Current: 8mA/24V(relay open, LED displays OFF about 4mA/24V); 58mA/24V(relay closed)
A set of transformations(normally open/normally close, NO/NC)
Contact Load: NO: 30A/250V AC or 30A/30V DC; NC :20A/250V AC or 20A/30V DC
Attention: Because high voltage DC electric arc damages relay contact,
so the electric load above DC60V load current is less than 10A.
Contact Resistance: le;100m Omega;(1A 6VDC)
Mechanical Durability: 10 millions Electricity durability: gt;100,000 (20A~250VAC)
Operating Temperature: -40~85 deg;C

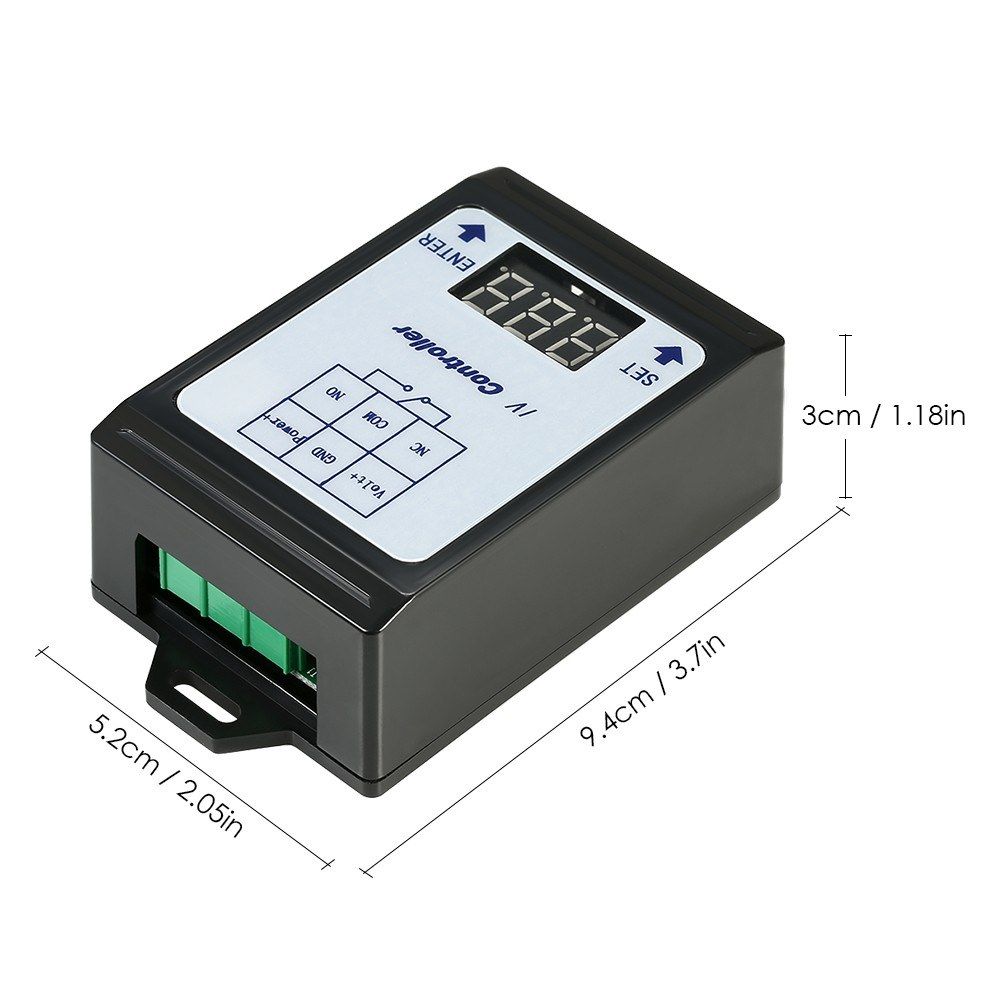

Size: 9.4 * 5.2 * 3cm / 3.7 * 2.05 * 1.18in
Package Size: 9.5 * 6 * 3cm / 3.74 * 2.36 * 1.18in
Package Weight: 85g / 3oz
Package List:
1 * Relay Switch Controller
We confidently assure you'll be satisfied with what you get.However, If there's a chance that you are not satisfied with our goods or something else, please let us know before leaving us a Negative feedback. We will try our best for 100% customer satisfaction. Your 5-Star Positive Feedback is much appreciated to us, and your satisfaction is our greatest motivation to move forward.Welcome to Shop Here! Want more Items? Please come visit our SHOP.
*Shipping and Packaging All it will be double checked and well packed before sending.It will be dispatched within 5 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).Your satisfaction is our first priority.
*If you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
Key Features
Digital display DC voltage detection, control the relay output.
DC 6~80V relay interface board with 2 buttons for easy operation.
With clear LED display, convenient to check the value.
Adjustable Voltage Detection Range: DC 0~99.9V.
When the measured voltage is lower than the lower limit or higher than upper limit value, the relay works.
Model | N/A |
---|---|
Production Country | China |
Weight (kg) | 0.09 |
Color | N/A |
From the Manufacturer | N/A |
Care Label | N/A |
