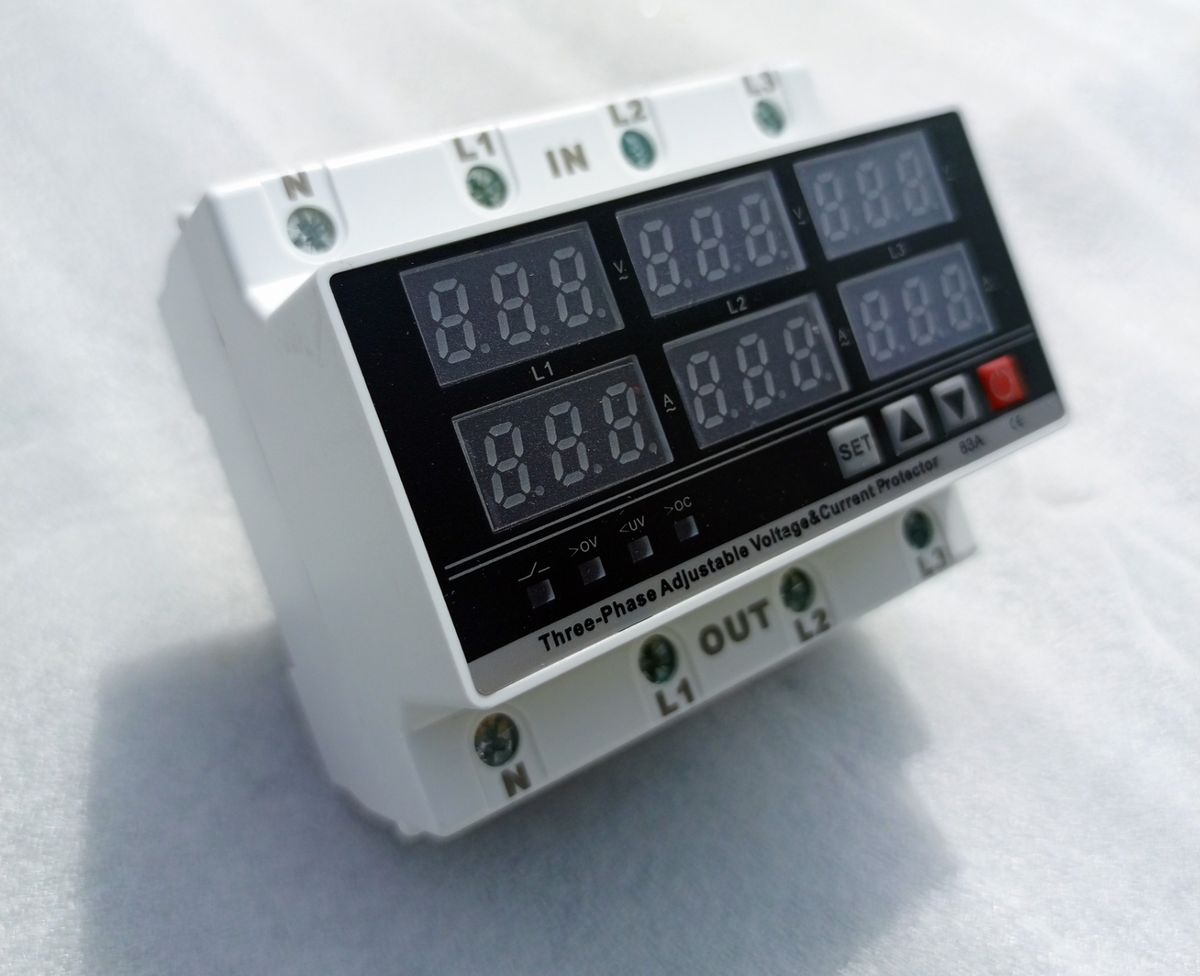

Three Phase Adjustable Voltage Protector Regulator 63A
˂
˃
Three Phase Adjustable Voltage Protector Regulator 63A
Price:
₦53,000
Brand: Generic
Share:
Product Description
Three 3 phase Adjustable Voltage Current Protector 63A 220V 3P+N Over and Under Volt regulator with Current/load limiter Surge Protector
This device allows you set your own over voltage and low voltage cut off points. It also equipped with current/load limiter function. It is designed for all three phase appliances and homes.
Functions:
1.Over-voltage Adjustable protection
2.Under-voltage Adjustable protection
3.Over-Current Adjustable protection
4. Asymmetry protection
5.Phase sequence protect
6.Automatic time Adjustable
ParameterCode Parameter ValueP1 Power On Time 1-500SU1 Over Voltage 230-300VU2 Recovery Voltage 220-295VU3 Recovery Time 1-500SU4 Power Off delay Time 0.1-30SU5 Under Voltage 140-210VU6 Recovery Voltage 145-215VU7 Recovery Time 1-500SU8 Power Off delay Time 0.1-30SU9 Voltage Deviation _9.5 to 9.5%U10 Asymmetry 20-99VU11 Phase squence protect on/offC1 Over Current 3-63AC2 Recovery Time 1-500SC3 Power Off delay Time 0.1-30SC4 Current Deviation _9.5 to 9.5%C5 Continues Over Current Times 1-20 off
This device allows you set your own over voltage and low voltage cut off points. It also equipped with current/load limiter function.
It comes with a very detailed manual. Very easy to set up. It is built with high voltage control precision and very resistant to heat and flames
It comes with a very detailed manual. Very easy to set up. It is built with high voltage control precision and very resistant to heat and flames
This device allows you set your own over voltage and low voltage cut off points. It also equipped with current/load limiter function. It is designed for all three phase appliances and homes.
Functions:
1.Over-voltage Adjustable protection
2.Under-voltage Adjustable protection
3.Over-Current Adjustable protection
4. Asymmetry protection
5.Phase sequence protect
6.Automatic time Adjustable
ParameterCode Parameter ValueP1 Power On Time 1-500SU1 Over Voltage 230-300VU2 Recovery Voltage 220-295VU3 Recovery Time 1-500SU4 Power Off delay Time 0.1-30SU5 Under Voltage 140-210VU6 Recovery Voltage 145-215VU7 Recovery Time 1-500SU8 Power Off delay Time 0.1-30SU9 Voltage Deviation _9.5 to 9.5%U10 Asymmetry 20-99VU11 Phase squence protect on/offC1 Over Current 3-63AC2 Recovery Time 1-500SC3 Power Off delay Time 0.1-30SC4 Current Deviation _9.5 to 9.5%C5 Continues Over Current Times 1-20 off
This device allows you set your own over voltage and low voltage cut off points. It also equipped with current/load limiter function.
It comes with a very detailed manual. Very easy to set up. It is built with high voltage control precision and very resistant to heat and flames
It comes with a very detailed manual. Very easy to set up. It is built with high voltage control precision and very resistant to heat and flames
What's In the Box
1 * 3phase Adjustable Voltage ProtectorManual
Product Specification
Model | 3PHPS63 |
---|---|
Production Country | China |
Weight (kg) | 0.6 |
Certifications | Eco Friendly |
Color | Off White |
Main Material | N/A |
From the Manufacturer | Supower Electric Co ltd |
Care Label | Indoor use only. Do not drop |
